Brake hose, rear

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

NOTE: RISK OF DAMAGE
Incorrect routing of the brake hose.
If the brake hose is twisted or in contact with surrounding components, it can be damaged and cause the brake system to fail.

Do not install the brake hose in a twisted position.

NOTE: TECHNICAL INFORMATION
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE REAR LEFT AND RIGHT WHEELS .
Refer to INSTALLING BRAKE PEDAL TENSIONER .

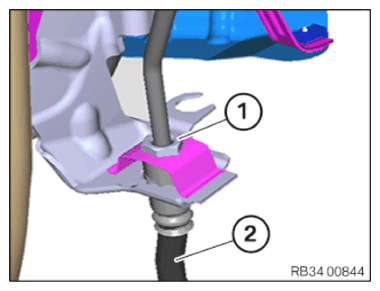

Release union screw (1).
Remove the brake hose (2) from the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

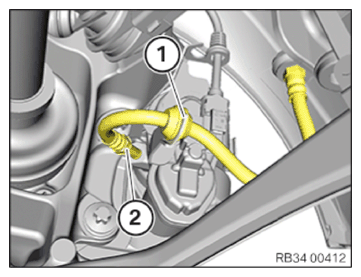

Detach the brake hose from the holder (1).
Detach brake hose (2) from brake caliper.

Courtesy of BMW OF NORTH AMERICA, INC.
