Removing the rear left and right wheels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
Removing the wheel
NOTE:
TECHNICAL INFORMATION
A wheel lifter is recommended for easier wheel removal and installation without exertion (see applicable Dealer Equipment Catalog).
A wheel lifter is recommended for easier wheel removal and installation without exertion (see applicable Dealer Equipment Catalog).
- In vehicles with M Carbon ceramic brake: It is essential to use the wheel lifter to remove the wheel.
This process is intended to prevent damage to the brake disc.
- If several wheels are removed simultaneously: Use a piece of chalk to mark on each tire the axle and side on which the corresponding wheel is fitted.

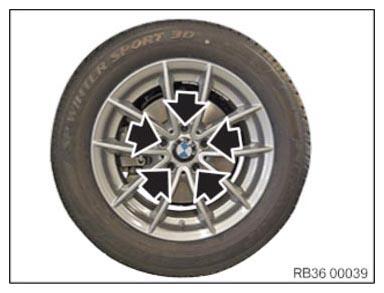

- Release the lug bolts (arrows) crosswise and remove the wheel.
- For releasing and tightening lug bolts with the security code: Use the correct adapter from the set of special tools 0 492 518 (36 1 300).
