Remove the windshield
NOTE:
RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components
Electrostatic discharge
Damage to or destruction of electrical components
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away
- Read and comply with user information on using the associated special tool 12 7 060
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
- For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components
Scratches, surface damage
Careless handling of tools and sharp-edged components
Scratches, surface damage
- Protect working area
- Handle tools and components carefully
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail
For ADDITIONAL INFORMATION see: 51 31... General procedure for disassembly/installation of bonded window glass
The following procedure forms the basis for these repair instructions and must be observed without fail
For ADDITIONAL INFORMATION see: 51 31... General procedure for disassembly/installation of bonded window glass
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider"
For ADDITIONAL INFORMATION see: 51 31... Window glass removal using "spider"
Perform window removal using the "spider"
For ADDITIONAL INFORMATION see: 51 31... Window glass removal using "spider"
Preliminary work
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING INSIDE MIRROR .
- Refer to REMOVING THE KAFAS CAMERA .
- Refer to DISCONNECTING RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING LEFT AND RIGHT GUTTER STRIP OF THE WINDSHIELD .
- Refer to REMOVING WINDSHIELD PANEL COVER .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider"
For ADDITIONAL INFORMATION see: 51 31... Window glass removal using "spider"
Perform window removal using the "spider"
For ADDITIONAL INFORMATION see: 51 31... Window glass removal using "spider"
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details

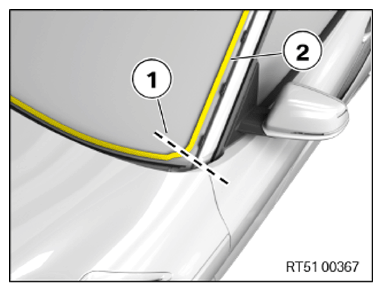

- Tape off body in area of piercing point with fabric adhesive tape
- Push the thread (1) through the adhesive bead (2) along the line from the inside
- Cut out the windshield with the spiderNOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

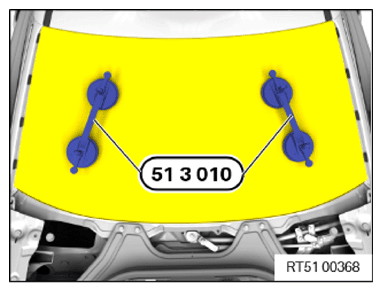

- Remove windshield with the special tool 0 492 609 (51 3010)
