Installing the side airbag (M CFRP bucket seat)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

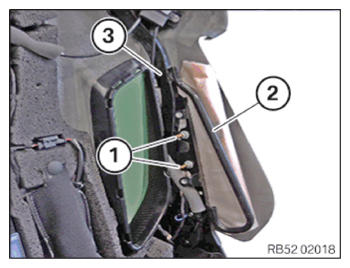

- Position the side airbag (2)
in the backrest frame (3)
correctly.
Connect the connector of the side airbag (1) and lock.
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Airbag on the backrest frame | ||
| Nut Replace nut. |
tightening torque | 6.5 Nm |
Follow-up work
- Refer to INSTALLING THE CUSHION SUPPORT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING BACKREST WIDTH ADJUSTMENT WITH VALVE (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INSERT FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING DRIVER'S SEAT .
