Install the emblem in the backrest of the front seat (M CFRP bucket seat)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Preliminary work

Refer to REMOVING THE INSERT OF THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

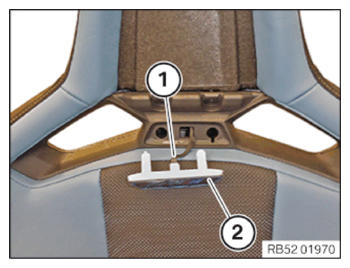

Position the emblem (2) correctly.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

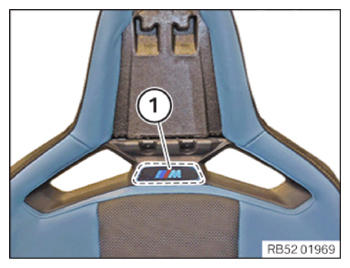

Clip in the emblem (1) carefully in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
