Replacing the cushion for the front seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING DRIVER'S SEAT .
Refer to REMOVING OUTER COVER ON FRONT SEAT .
Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
Refer to REMOVING THE INSERT OF THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
Refer to REMOVING THE EMBLEM FROM THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
Refer to REMOVING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to REMOVING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to REMOVING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
Refer to REMOVING THE BACKREST COVERING (M CFRP BUCKET SEAT) .

NOTE: TECHNICAL INFORMATION
The heating mat is glued to the foam pad and cannot be dismantled non-destructively.
When replacing the heating mat, a new one must always be installed with a new foam pad.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

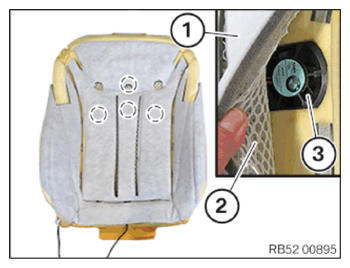

Version with seat climate control:
Push the heating mat (1) and upholstery (2) towards the side.

Unclip the fan (3).

Replace the cushion (2).

Parts: Upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

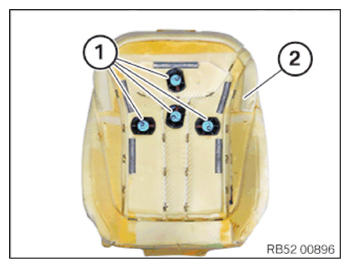

Version with seat climate control:
Clip the fan (1) into the cushion (2).

Courtesy of BMW OF NORTH AMERICA, INC.

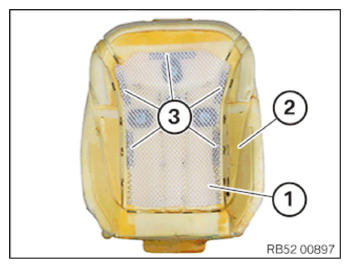

Version with seat climate control:
If applicable, cut the support (1) to fit the upholstery (2).

Secure the support (1) to the Velcro fasteners (3).

Courtesy of BMW OF NORTH AMERICA, INC.

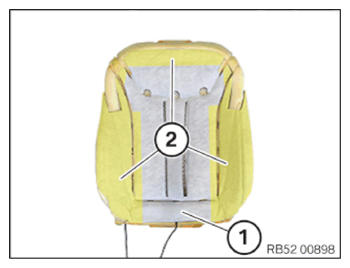

Version with seat heating:
Position the heating mat (1) on the cushion and align.

Bond the heating mat (1) with adhesive in the areas (2) with the cushion.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE REAR APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE FRONT APERTURE TRIM (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE EMBLEM IN THE BACKREST OF THE FRONT SEAT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INSERT FOR THE HEAD RESTRAINT (M CFRP BUCKET SEAT) .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING DRIVER'S SEAT .
