Replacing the cushion for the front seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For a better overview the removed condition is shown here.

Preliminary work

Refer to REMOVING DRIVER'S SEAT .
Refer to FOR CONTINUING WORK ON THE FRONT SEAT: MOUNT THE FRONT SEAT ON THE UNIVERSAL SEAT MOUNT AND CONNECT WITH THE WIRING HARNESS IF NECESSARY .
Refer to REMOVING THE REAR PANEL ON THE FRONT SEAT BACKREST .
Refer to REMOVING THE HEAD RESTRAINT .
Refer to REMOVING OUTER COVER ON FRONT SEAT .
Refer to REMOVING INNER COVER FROM THE FRONT SEAT .
Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .
Refer to REMOVING THE DRIVE MOTOR FOR THE HEADREST HEIGHT ADJUSTER .
Refer to REMOVING THE BACKREST COVER FROM FRONT SEAT-BACKREST .

NOTE: TECHNICAL INFORMATION
The heating mat is glued to the foam pad and cannot be dismantled non-destructively.
When replacing the heating mat, a new one must always be installed with a new foam pad.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Replace cushion.
Parts: Upholstery
Version with seat heating:

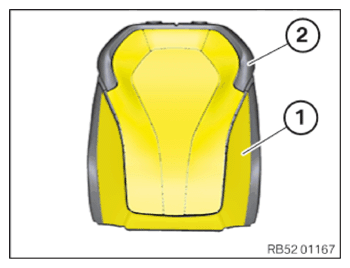

Position and align the heating mat (1) on the upholstery (2) .

Bond the heating mat (1) with the upholstery (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVER OF THE FRONT SEAT BACKREST .
Refer to INSTALLING THE DRIVE FOR HEAD RESTRAINT HEIGHT ADJUSTMENT .
Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING THE HEAD RESTRAINT .
Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
Refer to INSTALLING DRIVER'S SEAT .
