Install the backrest cover of the front seat backrest
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

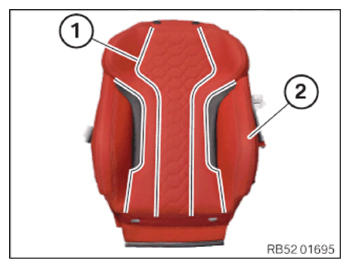

- Place the backrest cover (2) onto the upholstery.
- (1) Secure all trim wires with the clamps.
- Replace the clamps (2).
Parts: Clamps

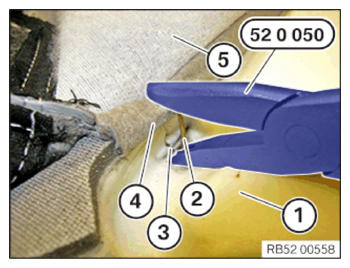

- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the backrest covering (5) with the clamp (2) and bend the clamp (2).
Follow-up work
- Refer to INSTALLING THE DRIVE FOR HEAD RESTRAINT HEIGHT ADJUSTMENT .
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING THE HEAD RESTRAINT .
- Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
- Refer to INSTALLING DRIVER'S SEAT .
