Installing the cover on the inside of the window frame
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

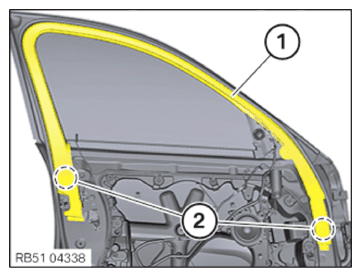

- Start from the rear and connect the cover (1) to the door frame.
- Clip in cover (1) into clips (2).
- Correctly insert the cover on the window frame (1) into the gap of the rubber window seal (2).
- Make sure the cover (1) is correctly positioned on the door weather strip.
Follow-up work
- Refer to INSTALLING FRONT INNER WINDOW CHANNEL STRIP .
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE MIRROR TRIANGLE COVER .
- Refer to ATTACHING THE COVER TO THE DOOR HANDLE .
