Install front door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

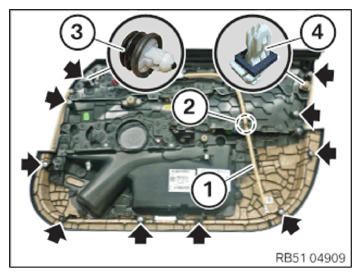

Attach the Bowden cable (1) in area (2) in the door trim panel.
Check the clips (arrows) (3) for damage and replace if necessary.
The clips (3) must not be engaged. The disengaged state is shown.
Check the clip (4) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the Bowden cable (1) for the release lever on the door lock (3).
Attach the Bowden cable (1) for the release lever on the counter support (2).
Connect all connectors and cable brackets of the wiring harness (4) to the door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the door trim panel (1) at top into the window cavity seal.
Clip the door trim panel (1) into the clips.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Door trim panel
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
