Install front inner window channel strip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

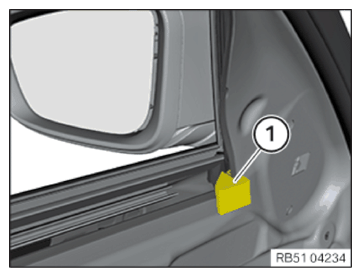

Check the sealing (1) for damage and replace as needed.
The sealing (1) must be positioned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

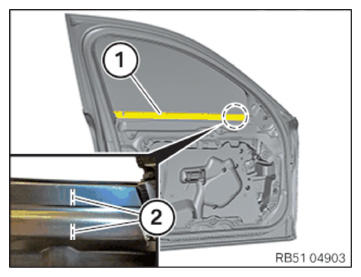

Position weather strip (1) on the door.
Make sure that the markings (2) on the weather strip (1) and the door are flush.
Lightly turn the weather strip (1) inwards.
The flocking must point upwards.
Push the weather strip (1) onto the door in a downwards movement coming as close to the side window glass as possible.

Courtesy of BMW OF NORTH AMERICA, INC.
Ensure the window channel strip is properly fitted on the rear window frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FRONT DOOR TRIM PANEL .
Refer to INSTALLING THE MIRROR TRIANGLE COVER .
Refer to ATTACHING THE COVER TO THE DOOR HANDLE .
