Installing support for front bumper cover

Courtesy of BMW OF NORTH AMERICA, INC.

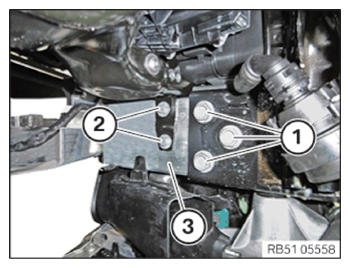

• Guide in the support for the front bumper cover (3) with the bottom deformation elements.
• Connect associated connector.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front bumper bracket to engine mount
  Hexagon screw with flange Replace screw	Tightening torque	100 Nm
  	Angle of rotation	180°

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Hood lock support to support for bumper cover and/or to top rear cross connection
  M8x25	Tightening torque	19 Nm
  Torx bolt	Tightening torque	19 Nm
  Hexagon screw M8	Tightening torque	19 Nm

• Correctly position engine oil cooler (2).
• Engage the engine oil cooler (2) upwards at the snap-in lugs (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the engine oil cooler (2) from falling down.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  upstream engine oil cooler
  M6x45 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Description is for right component only.
  The procedure on the left side is identical.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Hood lock support to support for bumper cover and/or to top rear cross connection
  M8x25	Tightening torque	19 Nm
  Torx bolt	Tightening torque	19 Nm
  Hexagon screw M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Description is for left component only.
  Procedure on the right side is identical.

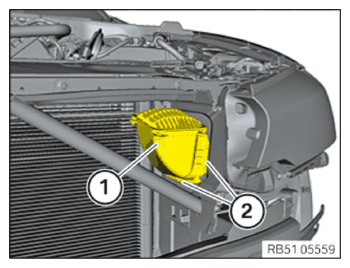

• Insert and install air duct (1).
• Slide the air duct (1) into the guide (2) from above.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (2) and tighten the bolts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Cover panel on support
  screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Description is for right component only.
  The procedure on the left side is identical.

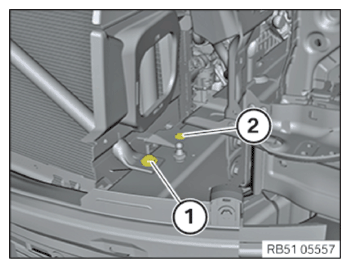

• Install the expanding rivet (2).
• Replace screws (1).

  Parts:  Screw

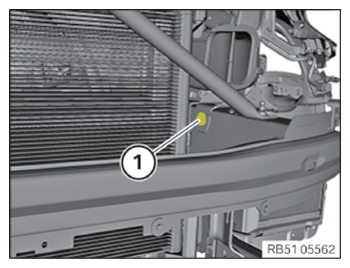

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front reinforcement strut
  screw Replace screws.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

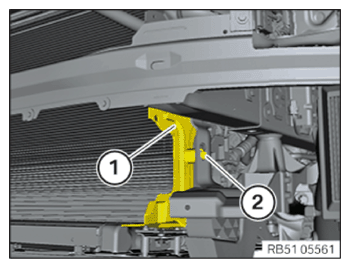

• Fold down the trim panel (1) and hook it into the guide at the lever (2) facing to the front.
• If necessary, clip the associated grille into the trim panel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Description is for left component only.
  Procedure on the right side is identical.

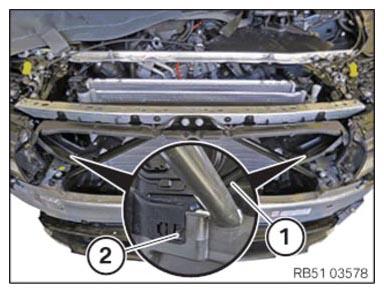

• Install the air inlet (1) and engage the detents (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

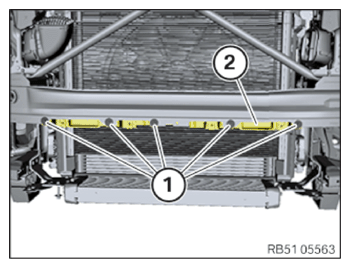

• Check impact absorber (2) for damage.

  Replace damaged impact absorber (2).

• First attach the impact absorber (2) at the bottom, then press it in at the top.
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE AIR DUCT AT THE BOTTOM .
• Refer to INSTALLING THE BOTTOM FRONT BUMPER COVER SUPPORT .
• Refer to INSERTING TOPPING AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING BOTH HEADLIGHTS .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE FANFARE ON THE LEFT SIDE .
• Refer to INSTALLING FANFARE HORN, RIGHT .
• Refer to FASTENING THE AUXILIARY COOLANT PUMP FOR THE HEATER CIRCUIT .
• Refer to MOUNTING THE EXTERNAL RADIATOR .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to CONNECT BATTERY GROUND LEAD . .
