Install front ornamental grille
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
Engine compartment lid is open.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- F90 until 7.20
:
Check all detents for damage; if necessary, replace the front ornamental grille (1).

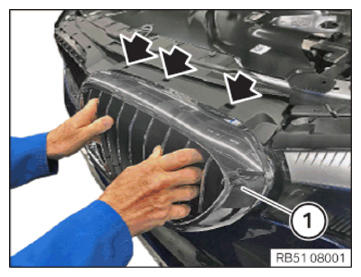

Position front ornamental grille (1) at the upper three latch mechanisms.
Latch mechanisms not yet locked.

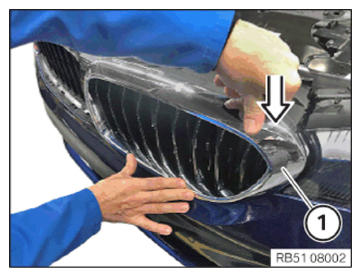

- Press the front ornamental grille (1) downward in the area of the headlight in the arrow direction until the bottom detents snap in.
- Press on all locking positions of the front ornamental grille (1) until all latch mechanisms are audibly engaged.
- F90 from 7.20
:
Check all the detents (2) for damage and replace the radiator grille (1) if necessary.

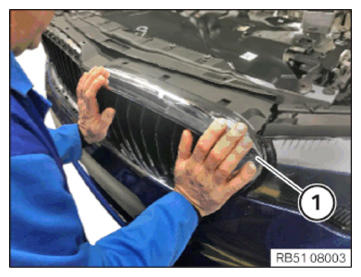

Position front ornamental grille (1) on the top detents (2).
Latch mechanisms (2) not yet locked.
Position front ornamental grille (1) on the lower detents.
Latch mechanisms not yet locked.
Press on all locking positions of the front ornamental grille (1) until all latch mechanisms are audibly engaged.
- Take a tensile sample on the front ornamental grille (1).

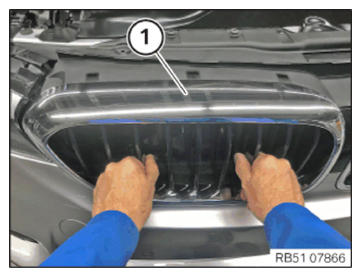

- Take a kidney grille bar in each hand, as shown, and pull on them to check the firm fit of the front ornamental grille (1).
- If necessary, press the front ornamental grille (1) on at all the detents again.
