Installing the bottom front bumper cover support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

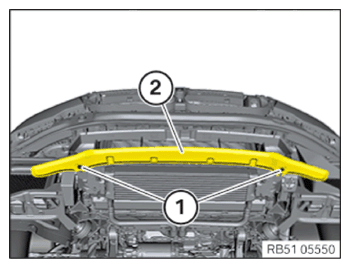

- Guide in the support for the bottom front bumper cover (2) and position it correctly.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS

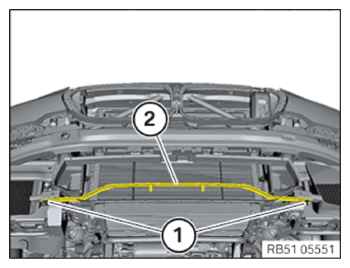

Support for the bottom bumper panel on the deformation element M6x20 screw Tightening torque 11.8 Nm - Install the cover (2).
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Cover panel on vertical connection Hexagon screw Tightening torque 4 Nm
Follow-up work
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
- Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
