Replacing transmission oil cooler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVING THE LEFT FRONT BOTTOM WHEEL ARCH COVER .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
- Refer to PARTIALLY INSTALLING OF ENGINE OIL COOLER .
- Refer to REMOVING THE EXTERNAL RADIATOR ON THE RIGHT .
- Refer to REMOVING THE RIGHT BRAKE VENTILATION DUCT .
- Refer to RELEASING THE COOLANT LINE OF THE LOW-TEMPERATURE COOLANT CIRCUIT FROM THE CHARGE AIR COOLER .
- Refer to REMOVING LOW-TEMPERATURE COOLANT RADIATOR .
- Refer to DRAINING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE COVER OF THE COOLING MODULE .
- Refer to DISCONNECTING REFRIGERANT LINES .
- Loosening electric coolant pump of returning line from holder.
- Unlock retaining lug (1)
- Unscrew the electric coolant pump (2) counter clockwise and put it aside.
- Refer to RELEASING ELECTRIC COOLANT PUMP OF FEED LINE FROM HOLDER .
- Refer to DISCONNECTING THE TRANSMISSION OIL COOLER LINE .
- Refer to REMOVING THE COOLANT RADIATOR WITH THE AIR CONDITIONING CONDENSER .
- Refer to REMOVING TRANSMISSION OIL COOLER .

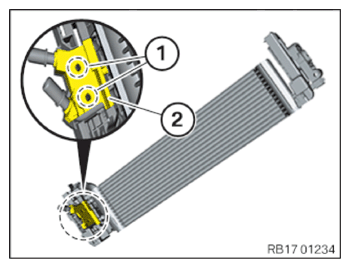

- Loosen screw (1) .
- Loosen screws (1) .
- Remove cover panel (2) .
- Feed out the transmission oil lines from the module bracket.

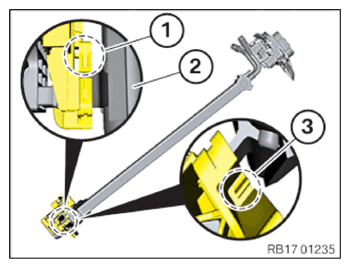

- Unlock the snap-in lug (1) on the unlocking (3) .
- Guide out the transmission oil cooler (2) upwards.
- Replace the transmission oil cooler.
Parts: Transmission oil cooler
- Lock the transmission oil cooler (2) downwards in the detent (1) .
- Feed in the transmission oil lines on the module bracket.
- Position the cover (2) .
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Cover to cooler module mount | ||
| Screw TS4x16 | tightening torque | 1.5 Nm |

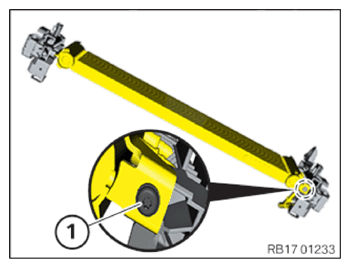

- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Cooler module mount on transmission oil cooler | ||
| Screw TS6x20 | tightening torque | 2.8 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION OIL COOLER .
- Refer to INSTALLING RADIATOR WITH THE AIR CONDITIONING CONDENSER .
- Refer to CONNECTING THE TRANSMISSION OIL COOLER LINE .
- Refer to FASTENING ELECTRIC COOLANT PUMP OF FEED LINE TO HOLDER .
- Fastening electric coolant pump of returning line to holder.
- Position electric coolant pump (2).
- Turn electric coolant pump (2) clockwise and engage at snap-in lug (1).
- Refer to CONNECTING REFRIGERANT LINES .
- Refer to INSTALLING THE COOLING MODULE COVER .
- Refer to INSTALLING LOW-TEMPERATURE COOLANT RADIATOR .
- Refer to FASTENING THE COOLANT LINE OF THE LOW-TEMPERATURE COOLANT CIRCUIT TO THE CHARGE AIR COOLER .
- Refer to INSTALLING RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE EXTERNAL RADIATOR ON THE RIGHT .
- Refer to ENGINE OIL COOLER PARTIAL INSTALLATION .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to EVACUATING AND CHARGING CONDITIONING .
