Install transmission oil cooler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Thread transmission oil cooler in upwards.

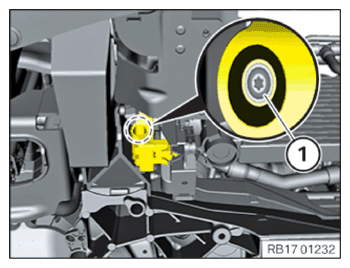

- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Cooler module mount | ||
| M6x30 screw | tightening torque | 10 Nm |

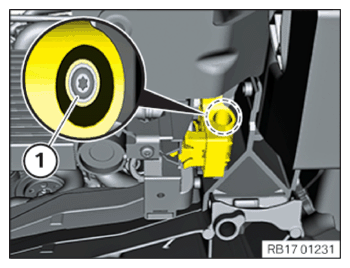

- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Cooler module mount | ||
| M6x30 screw | tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING RADIATOR WITH THE AIR CONDITIONING CONDENSER .
- Refer to CONNECTING THE TRANSMISSION OIL COOLER LINE .
- Refer to FASTENING ELECTRIC COOLANT PUMP OF FEED LINE TO HOLDER .
- Fastening electric coolant pump of returning line to holder.
- Position electric coolant pump (2).
- Turn electric coolant pump (2) clockwise and engage at snap-in lug (1).
- Refer to CONNECTING REFRIGERANT LINES .
- Refer to INSTALLING THE COOLING MODULE COVER .
- Refer to INSTALLING LOW-TEMPERATURE COOLANT RADIATOR .
- Refer to FASTENING THE COOLANT LINE OF THE LOW-TEMPERATURE COOLANT CIRCUIT TO THE CHARGE AIR COOLER .
- Refer to INSTALLING RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE EXTERNAL RADIATOR ON THE RIGHT .
- Refer to ENGINE OIL COOLER PARTIAL INSTALLATION .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to EVACUATING AND CHARGING CONDITIONING .
