Remove the control unit for the steering wheel electronics
WARNING:
High-voltage system.
The high-voltage system works with dangerous electrical voltage and high currents flow. Mortal hazard through electric shock!
The high-voltage system works with dangerous electrical voltage and high currents flow. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel. For additional information see:
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
With the ignition off and the high-voltage safety plug disconnected, the Check Control message "High voltage system faulty" is displayed by default.
The message "High-voltage system switched off" (absence of voltage) is only displayed when the ignition is switched on.
NOTE:
TECHNICAL INFORMATION
If a Check Control message "Charging not possible" appears after closing the high-voltage service disconnect, the following remedial measures are possible:
If a Check Control message "Charging not possible" appears after closing the high-voltage service disconnect, the following remedial measures are possible:
- Establish drive-ready state.
- Start charging process.
NOTE:
TECHNICAL INFORMATION
After replacing the steering wheel electronics, the "steering wheel hands-off detection" test module or the "steering wheel electronics" test module must be carried out.
After replacing the steering wheel electronics, the "steering wheel hands-off detection" test module or the "steering wheel electronics" test module must be carried out.
Preliminary work
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING THE FLAP FROM THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to DE-ENERGIZING THE HIGH-VOLTAGE SYSTEM .
- Refer to CHECKING THAT NO VOLTAGE IS APPLIED .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING THE AIRBAG UNIT OF THE STEERING WHEEL .
- Refer to REMOVING THE HORN PLATE .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
NOTE:
RISK OF DAMAGE
Damage to the steering wheel electronics
Failure to follow the instructions for disassembly and handling of the steering wheel electronics may result in damage to the control unit.
Damage to the steering wheel electronics
Failure to follow the instructions for disassembly and handling of the steering wheel electronics may result in damage to the control unit.

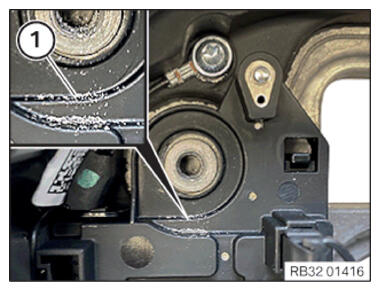

- It is mandatory to remove metal chips from the steering wheel electronics before removal! Metal chips can penetrate the control unit and lead to malfunction.
- Do not blow out metal chips!
- Before removing the steering wheel electronics, (1) remove metal shavings with a vacuum cleaner!

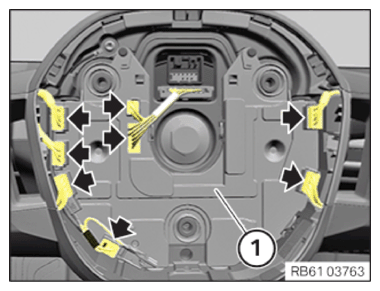

- Unlock all plug connections (arrows) and disconnect them.
- Remove the control unit (1) for the steering wheel electronics.
