Installing the outer A-pillar trim panel

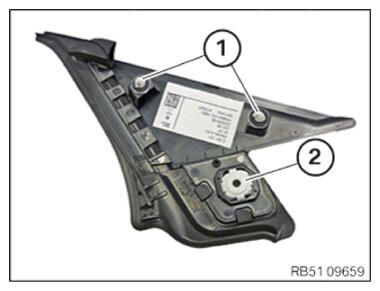

• Check the clips and (1)  replace them as needed.
• Check the adjusting element (2)  and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

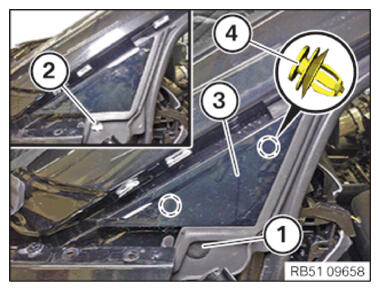

• Install the A-pillar trim panel (3)  and engage it at the clips (4)  .
• Tighten down screw (2)  .

• Mount the cover (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM STRIP ON THE FRONT SIDE PANEL .
• Refer to INSTALLING THE TRIM STRIP .
• Refer to INSTALLING THE OUTER B-PILLAR TRIM PANEL .
• Refer to ADJUSTING THE OUTER A-PILLAR TRIM PANEL .
