Installing the trim strip

Precondition

Front door is open.

• Check clamp (1)  for damage.

  Defective or missing clamps (1)  need to be replaced.

• If necessary, release the nozzles (2)  from the clamps (1)  and mount them on the bodywork.

  Faulty or missing nozzles (2)  must be replaced.

• Correctly position the clamps (1)  on the trim strip (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

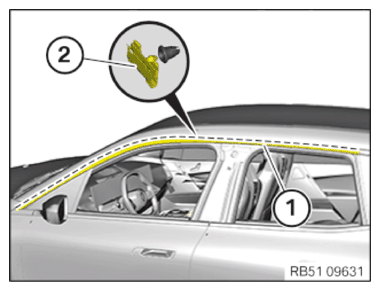

• Fit trim strip (1)  carefully and guide it on the trim strip on the side window properly.
• Carefully clip in the trim strip (1)  starting at the rear with the clips (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OUTER B-PILLAR TRIM PANEL .
