Installing windshield panel cover

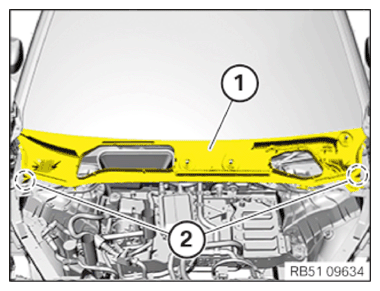

• Install the cowl cover (1)  and position it correctly.
• Engage the cowl cover (1)  at the detents (2)  .
• Engage the cowl cover (1)  , beginning on the side, in the detent on the windshield.

  Courtesy of BMW OF NORTH AMERICA, INC.

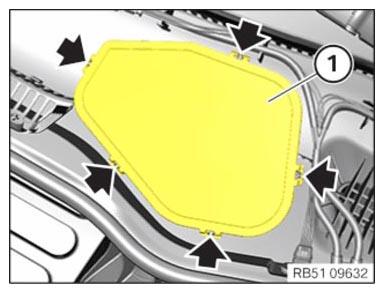

• Install the cover (1)  and engage it into the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

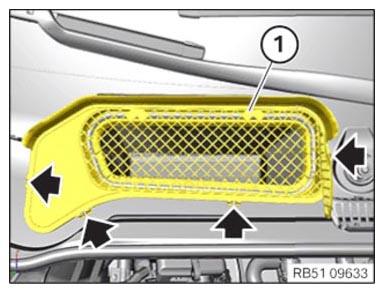

• Install the cover (1)  and engage it into the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

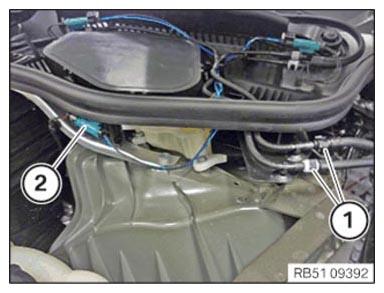

• Connect washer fluid hoses and engage the snap fasteners (1)  .
• Connect connectors (2)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
