Installing left and right wiper arm

Install left and right wiper arm

NOTE: TECHNICAL INFORMATION
The wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate wiper system 1x to ensure wiper system is in the correct installation position.

Attach the wiper arms (3) and position correctly.
Position the wiper arms with the wiper blade (2) correctly in relation to the window edge (1) .

TECHNICAL DATA SPECIFICATIONS

Distance from window pane edge to wiper blade
Wiper arm right (A)	79.5 mm
Wiper arm left (B)	112.4 mm

Courtesy of BMW OF NORTH AMERICA, INC.

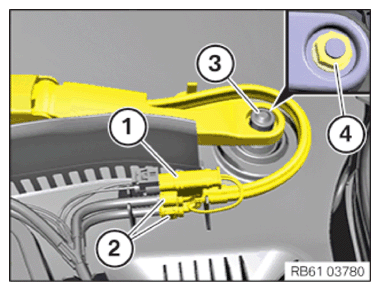

Tighten nut (4) .

TIGHTENING TORQUES SPECIFICATIONS

Windshield wiper arm
Combination hexagon nut	Tightening torque	35 Nm

Mount the cover cap (3) .
Feed the washer fluid hose (2) into the guide of the windshield panel and connection at the separation point.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Installing the right wiper arm

Attach the wiper arm (3) and position it correctly.
Position the wiper arm with wiper blade (2) correctly on the window edge (1) .

TECHNICAL DATA SPECIFICATIONS

Distance from window pane edge to wiper blade
Wiper arm right (A)	79.5 mm
Wiper arm left (B)	112.4 mm

Courtesy of BMW OF NORTH AMERICA, INC.

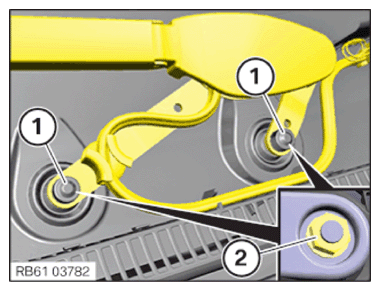

Tighten nuts (2) .

TIGHTENING TORQUES SPECIFICATIONS

Windshield wiper arm
Combination hexagon nut	Tightening torque	35 Nm

Mount the cover caps (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

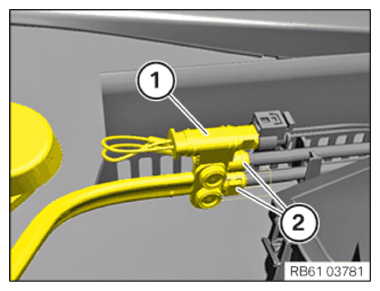

Connect connectors (1) and lock.
Feed the washer fluid hose (2) in the guide of the windshield panel and connect to the separation point.
