Installing the center bumper guide

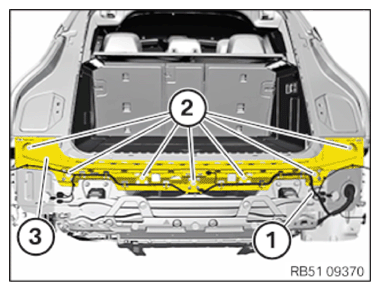

- Install bumper guide (3) .
- Tighten nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Bumper guide to body | ||
|---|---|---|
| Nut | Tightening torque | 4.6 Nm |
- Secure wiring harness (1) into the holders of the bumper guide.
Follow-up work
- Refer to INSTALLING THE LEFT AND RIGHT SIDE BUMPER GUIDE .
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
- Refer to INSTALLING THE CENTER DIFFUSER .
- Refer to INSTALLING THE REAR UNDERBODY PANELLING .
- Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
