Installing the side trim of the bumper cover (M Aerodynamics package)

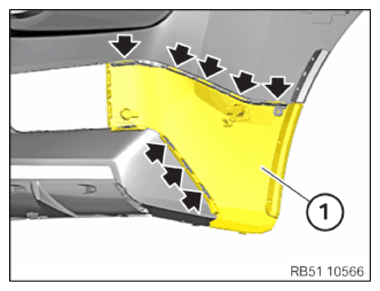

• Position the side trim of the bumper cover (1)  on the detents (arrows) and snap it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

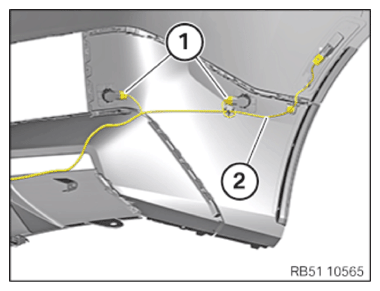

• Clip the wiring harness (2)  into the existing holders.
• Connect the plug connections (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM OF THE BUMPER COVER (M AERODYNAMICS PACKAGE) .
• Refer to INSTALLING THE HOLDER FOR THE TAIL LIGHT (M AERODYNAMICS PACKAGE) .
• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
• Refer to INSTALLING THE CENTER DIFFUSER .
• Refer to INSTALLING THE REAR UNDERBODY PANELLING .
• Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
