Installing the rear bumper trim

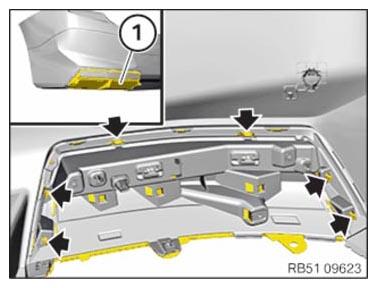

• Check if all the detents (arrows) are present on the bumper trim (1)  and if they are damaged; if necessary, replace the bumper trim (1)  .
• Install the bumper trim (1)  and engage it at all detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM ON THE REAR BUMPER PANEL .
• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
• Refer to INSTALLING THE CENTER DIFFUSER .
• Refer to INSTALLING THE REAR UNDERBODY PANELLING .
• Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
