Installing rear bumper cover lower section

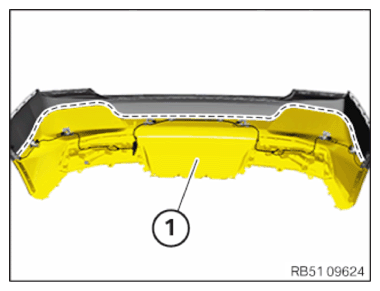

- Position bumper cover lower section (1) correctly and engage the detents along the dotted line.
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE LEFT AND RIGHT DIFFUSER .
- Refer to INSTALLING THE CENTER DIFFUSER .
- Refer to INSTALLING THE REAR UNDERBODY PANELLING .
- Refer to PUTTING THE REAR RADAR SENSOR SHORT RANGE LEFT AND RIGHT INTO OPERATION .
