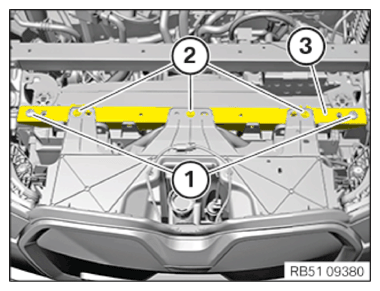

Install front upper cross connection
- Guide in cross connection (3) and position it correctly.
- Replace screws (1)
.
Parts: Screw
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cross connection at the front of the lock | ||
|---|---|---|
| Oval-head screw Replace screws |
Tightening torque | 28 Nm |

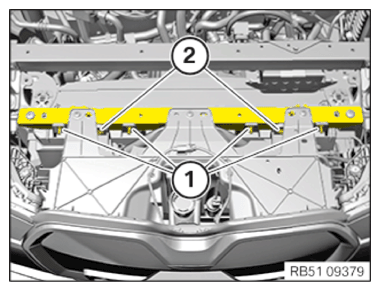

- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Multifunctional frame on cross connection | ||
|---|---|---|
| Oval-head screw | Tightening torque | 8 Nm |

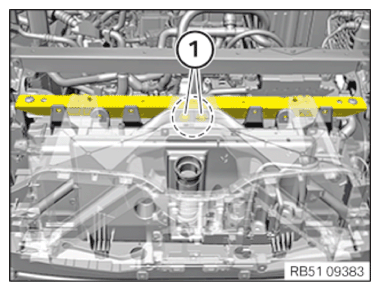

- Replace screws (1)
.
Parts: Screw
- Tighten the screws (1) through the recess of the multifunctional frame.
TIGHTENING TORQUE SPECIFICATIONS
| Reinforcement strut on upper front connection/bumper bracket | ||
|---|---|---|
| M8x20 screw Replace screws |
Tightening torque | 28 Nm |
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Washer fluid reservoir | ||
|---|---|---|
| Screw | Tightening torque | 8 Nm |
- Mount the expanding rivets (1) .
Follow-up work
- Refer to INSTALLING THE CROSS CONNECTION UPPER SECTION .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
