Install the cross connection upper section

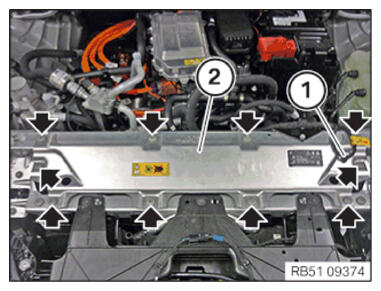

- Feed in the cross connection (2) .
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Cross connection, upper section | ||
|---|---|---|
| Screw Replace screws |
Tightening torque | 28 Nm |
- Clip in the cable clip (1) .
Follow-up work
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
