Install the center console

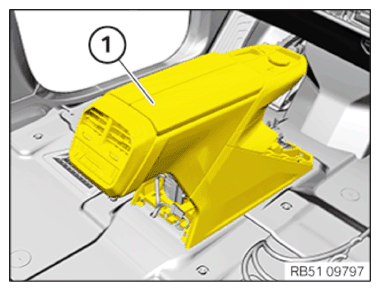

• Feed the center console (1)  into the vehicle.
• Feed the wiring harness into the center console (1)  and connect the existing connector if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  .

• Connect connectors (2)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

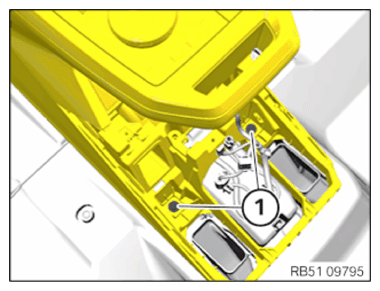

• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

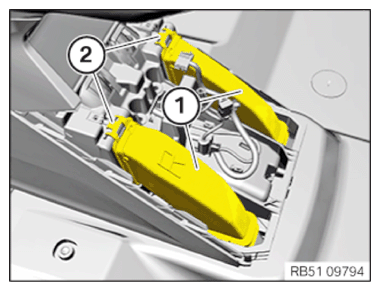

• Install the air ducts (1)  and engage it at the detents (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
• Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
