Installing the headlining (with sliding/tilting sunroof)

Precondition

The front seats have been fully adjusted towards the bottom

The front seat backrests have been fully adjusted towards the rear

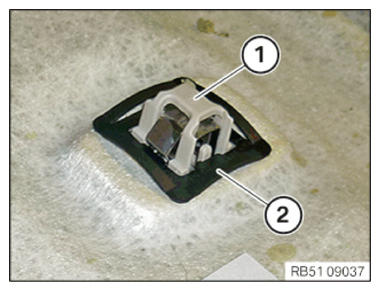

• Install the counter support (1) of the sun visors in the headlining and fasten with the clamps (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

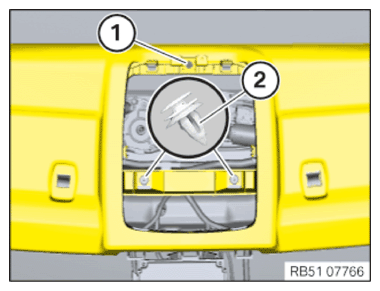

• Check the clip (1) on the headlining (2) for damage and presence

  Damaged or missing clips (1) must be replaced

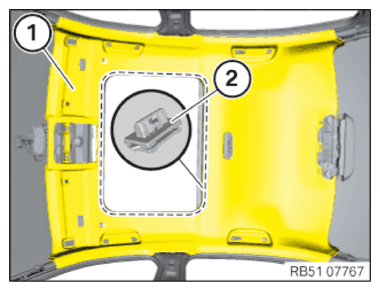

• Check the clamps (2) along the dotted line for damage and presence

  Damaged or missing clamps (2) must be replaced

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in headlining (1) with the help of a support person through the cutout of the rear window and set it aside
• Feed in the headlining (1) with the help of an support person on the respective edge protection

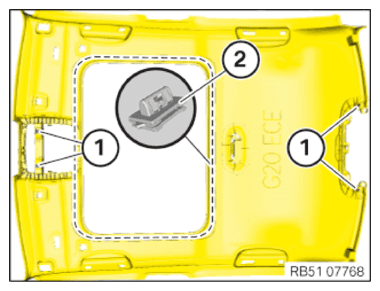

• Clip in the headlining (1) in the area of the dotted line on the sliding/tilting sunroof case and the clamps (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip headlining to the clips (2)
• Tighten down screw (1)
  TIGHTENING TORQUES SPECIFICATION



  Headlining on frame
  Oval-head screw	Tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip headlining (1) to the clips (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REPLACING THE SPACER .
• Refer to FOR REUSING: REMOVING THE ADHESIVE BEAD .
• Refer to INSTALLING THE REAR WINDOW .
• Refer to INSTALLING THE BRAKE LIGHT .
• Refer to TRIM OF THE 3RD INSTALLING THE BRAKE LIGHT .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL PARTIALLY .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE REAR LEFT AND RIGHT WATER CHANNEL .
