Body Equipment -- Repair (1 Of 2) -- M3 (G80)
>>
51 31 Windshield, Rear Window
>>
51 31 200 Removing and installing rear window (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Replace the spacer
Replace the spacer

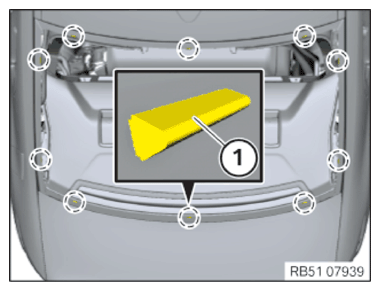

Completely remove available spacer buffers (1)
Remove adhesive residue on the body and clean the adhesive area
Glue the new spacer buffer (1) in the center on the body side embossed marks
Parts:
Spacer buffer
Courtesy of BMW OF NORTH AMERICA, INC.
