63 25 Center High-Mounted Stop Lamp
>>
63 25 003 Removing and installing center high-mounted brake light (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Installing the brake light (CHMSL)
Installing the brake light (CHMSL)

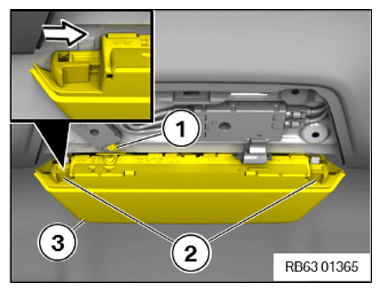

3. Position the brake light
(3)
Lock both the slides
(2)
inwards
Connect connectors
(1)
and lock
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
TRIM OF THE 3RD BRAKE LIGHT
.
