Fit the roof lining

Precondition

The front seats have been fully adjusted towards the bottom

The front seat backrests have been fully adjusted towards the rear

• Install the end support of the sun visors (1) in the headlining and mount it with clamps (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

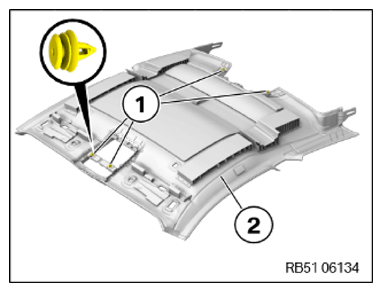

• Check the clips (1) on the headlining (2) for damage and replace, if necessary

  Courtesy of BMW OF NORTH AMERICA, INC.

• With a support person, install the headlining (1) through the cutout of the rear window and correctly position
• Position and clip in the headlining (2) at the clips (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the clips (2) on the headlining (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REPLACING THE SPACER .
• Refer to FOR REUSING: REMOVING THE ADHESIVE BEAD .
• Refer to INSTALLING THE REAR WINDOW .
• Refer to INSTALLING THE BRAKE LIGHT .
• Refer to TRIM OF THE 3RD INSTALLING THE BRAKE LIGHT .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL PARTIALLY .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISORS .
• Refer to INSTALLING THE TRIM PANEL FOR THE REAR LEFT AND RIGHT WATER CHANNEL .
