Install reinforcement strut

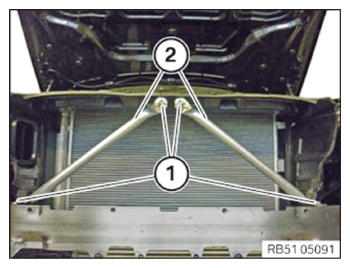

• Feed in reinforcement strut (2)  .
• Tighten the screws (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front reinforcement strut
  screw
  	Tightening torque	24 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSERT TOP AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
