Partially installing the left front and right wheel arch trim
NOTE:
Description is for left component only. Procedure on the right side is identical.
Partly install the front wheel arch trim
Check

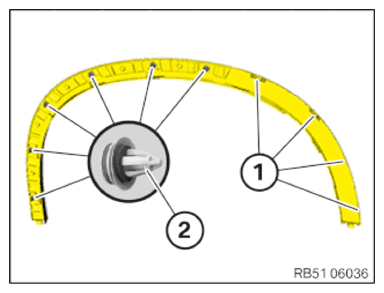

- Check the clips (2)
for damage and replace where required.
The sealing ring must not be damaged or missing.
- Check detents (1)
for damage.
Result
» The detents (1) of the wheel arch trim are damaged.
Measure
- Replace wheel arch trim.
- Engage the wheel arch trim (1)
into the detents (2)
in the area of the bumper cover.
