Installing air duct trim

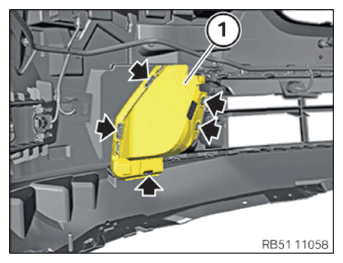

• Position the air routing trim (1) on the retaining lugs (arrows) and snap in.

  Courtesy of VOLVO CARS CORPORATION

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
