Installing the airbag control unit
WARNING:
Airbag unit
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00... SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

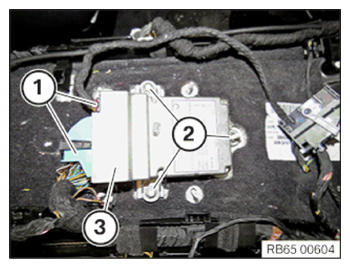

- Position airbag control unit (3) correctly.
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Airbag control unit to body screw Tightening torque 8 Nm - Connect connectors (1) and lock.
Attaching the drip protection for airbag control unit

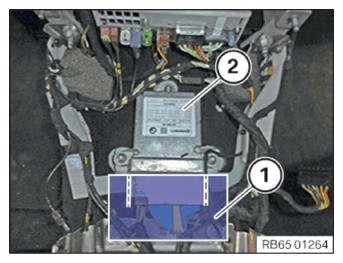

- Place the adhesive strip (1) on the edge of the control unit (2) as shown and stick it without any creases.
Turn the adhesive strip (1) over on the dotted lines and stick it on the sides of the control unit (2).
The adhesive strip (1) is used as drip protection an must cover the plug connection of the control unit (2) completely .
CONSUMABLE DESCRIPTIONAdhesive strip 65774A24C60
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ADJUSTING THE SENSORS FOR THE DRIVING DYNAMICS .
