Installing fan cowl
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Follow-up work
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .

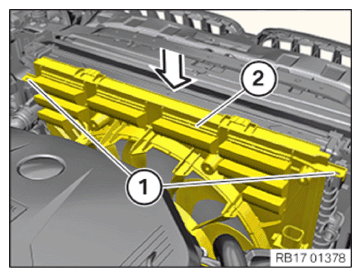

- Feed in and install the fan cowl (2) in the direction of the arrow.
- Lock left and right locking mechanisms (1).

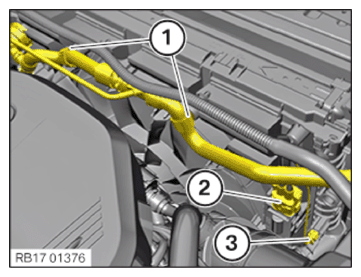

- Fasten the coolant hose to the clamps (1).
- Pin up connector (2) and lock audibly.
- Pin up connector (3) and lock audibly.

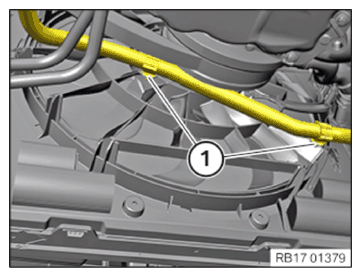

- Fasten the coolant hose to the clamps (1) at bottom on the fan cowl.
