Install the wiring harness section of the transmission wiring harness

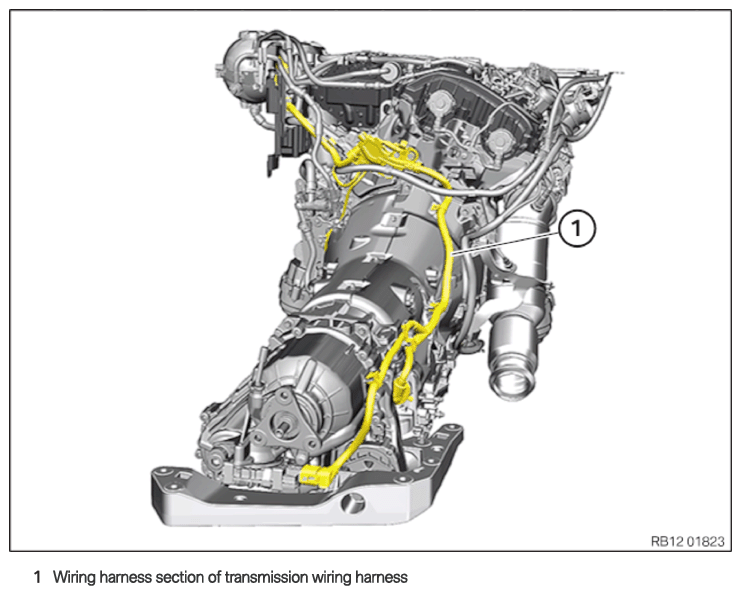

Wiring harness section of transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

Insert and install the wiring harness (1) for the transmission module.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Connect connectors (1) and lock.
The connector (1) must engage audibly.
Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Grounding cable/wiring harness section to transmission
BM6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure the clamps (arrows).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in the wiring harness section (2) of the supply module and install.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (2) .
Replace screws (1) .
Parts: Screws
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Holder on the transmission
Torx screw BM8 Replace screws.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the transmission

Move the transmission (3) to the installation position.
Replace screws (2) .
Parts: Screws
Tighten down screws (2) .

TIGHTENING TORQUES SPECIFICATION

Transmission cross member to body
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the cable with the clamp (1) .
Loosening the luggage strap (1) .
Remove special tools 2 219 012 and 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (2) .
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (1) of the transmission wiring harness.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the clamp (2) .
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Make sure that the lock (2) engages correctly.
Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the clamps (arrows).
Insert the cable bracket (2) in the arrow direction and install it.
The lock (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and lock cable clip (3) .
The cable clip (3) must engage audibly.
Insert the cable bracket (2) in the arrow direction and install it.
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the connector (1) onto the holder (2) for the DME control unit in the arrow direction and lock it.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the cable clip (3) .
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
