Install instrument panel trim
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

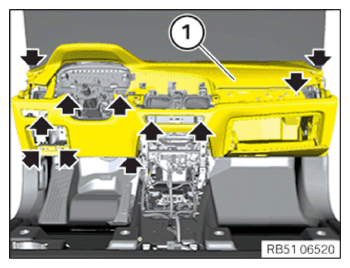

- Carefully insert the dashboard trim (1) in the vehicle. Feed in the cables.
- Carefully continue to feed in the dashboard trim (1) and correctly position.
- Ensure that no cables are jammed.
- Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS

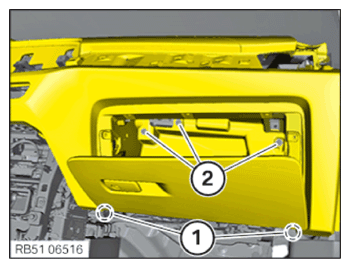

Dashboard screw Tightening torque 1.8 Nm - Tighten the screws (2)
in the glove compartment.TIGHTENING TORQUE SPECIFICATIONS
Dashboard screw Tightening torque 1.8 Nm - Tighten the screws (1)
below the glove compartment.TIGHTENING TORQUE SPECIFICATIONS

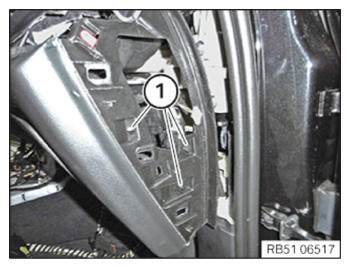

Dashboard screw Tightening torque 1.8 Nm - Fasten the cable bracket (1)
from the inner on the dashboard trim.

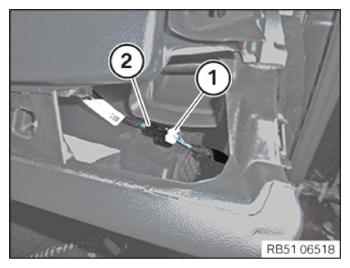

- Connect and lock connector (2) on the glove compartment.
- Connect and lock connector (1)
on the front passenger airbag.

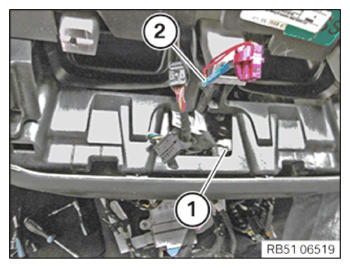

- Connect connectors (1) and lock.
- Fasten the vehicle wiring harness (2)
on the dashboard trim.
Follow-up work
- Refer to INSTALLING THE GLOVE BOX LIGHT .
- Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
- Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to INSTALLING AUDIO CONTROL UNIT .
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to INSTALLING THE INSTRUMENT CLUSTER .
- Refer to INSTALLING THE GAP COVER .
- Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
