Install the transmission mounting bracket

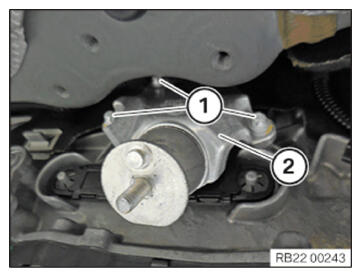

• Remove transmission mounting bracket (2) on the right transmission side.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission mounting bracket to transmission
  M8 Replace screws.	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
• Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
