Installing transmission cross member

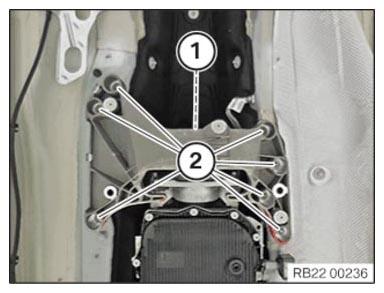

- Install transmission cross-member.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to rubber mounts M12 tightening torque 100 Nm - Replace screws (2).
Parts: Screws
- Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 tightening torque 19 Nm - Remove the transmission jack.

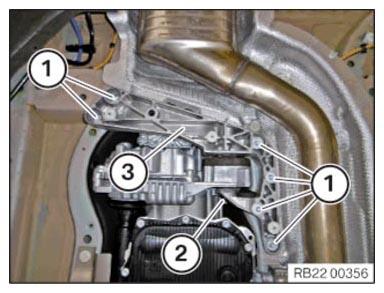

- Install the transmission cross member (3).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Transmission cross member to rubber mounts M12 Tightening torque 68 Nm - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

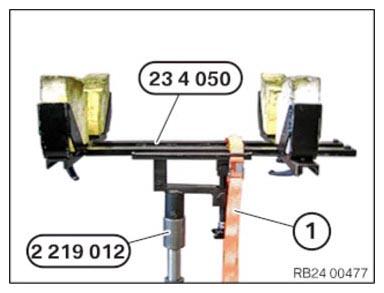

Transmission cross member to body M8 Tightening torque 19 Nm - Release the luggage strap (1) from the transmission.
- Remove the special tools 0 495 498 (23 4 050)
and 2 219 012
from the transmission.
