Install the transmission bearing support

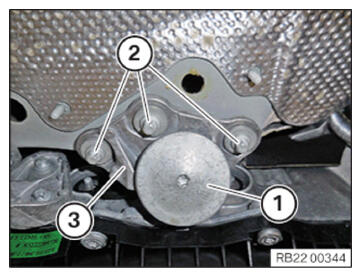

• Version 1:
• Install transmission bearing support holder (3).
• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission bearing support to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the vibration absorber (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rubber mount to transmission bearing support
  M8	Tightening torque	19 Nm

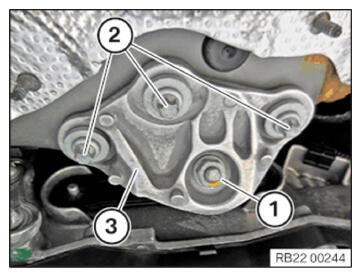

• Version 2:
• Install transmission bearing support holder (3).
• Tighten screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission bearing support to body
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Rubber mount to transmission bearing support
  M8	Tightening torque	19 Nm

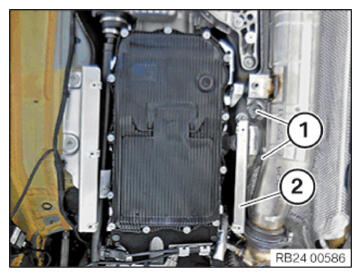

• Install the retaining plate (2).
• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Retaining plates for underbody cover
  Sheet metal nut/plastic nut Replace nuts.	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
