Installing the center armrest

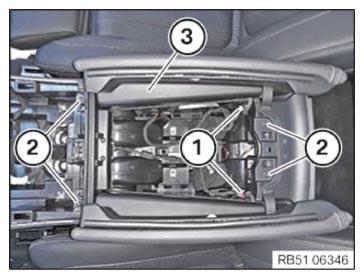

• Insert center armrest (3).
• Tighten screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Center armrest to center console
  Oval-head screw	Tightening torque	3.0 Nm

• If required, connect the connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE LEFT AND RIGHT KNEE PAD .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
