Installing the center console trim

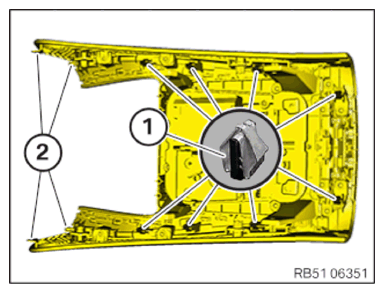

• Check clamps (1) for damage and if available.

  Damaged or missing clamps (1) must be replaced.

• Check the guides (2) for damage, replace the center console trim if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

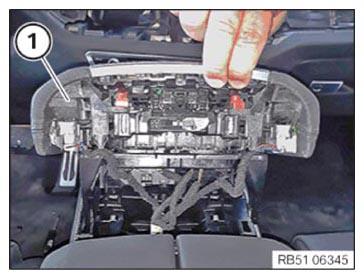

• Feed in center console trim (1).
• Connect and lock the associated connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

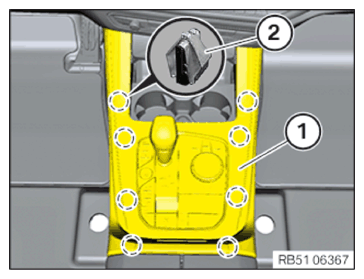

• Correctly position center console trim (1) and engage at clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

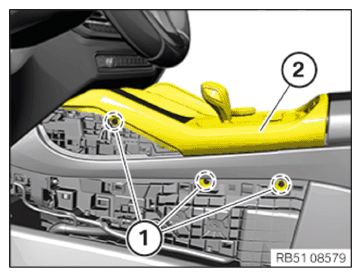

• Tighten screws (1) on center console trim (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT KNEE PAD .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
