Installing the left and right knee pad
NOTE:
Perform the steps on the left and right side.
Installing the knee pad
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

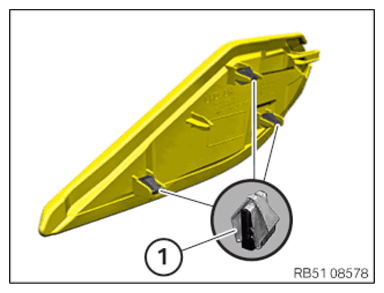

- Check the clamps (1) for damage and, if necessary, replace them.

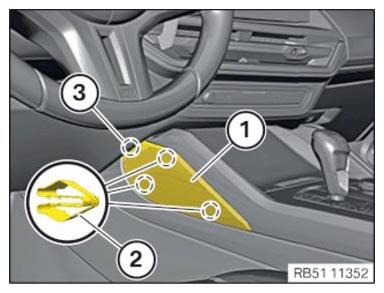

- Maneuver the knee pad (1) into the guide (3) and position it correctly.
- Snap the knee pad (1) into the clamps (2).
