Remove cup holder

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to REMOVING THE CARPET ON THE CENTER CONSOLE ON THE LEFT AND RIGHT SIDES .
• Refer to REMOVING THE KNEE PAD ON THE LEFT AND RIGHT .
• Refer to REMOVING THE CENTER CONSOLE TRIM .

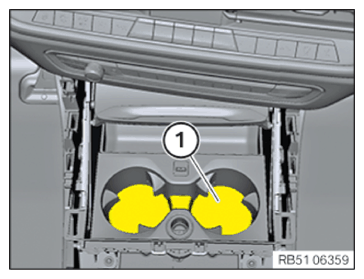

• Remove the insert (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

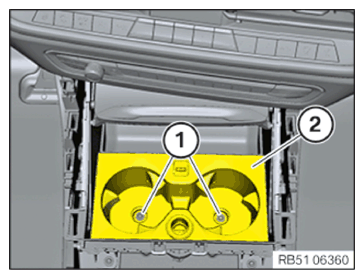

• Loosen screws (1).
• Feed the cup holder (2) out to the top.
• Unlock associated plug connections and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.
