Removing the knee pad on the left and right
NOTE:
Perform the steps on the left and right side.
Removing the knee pad
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

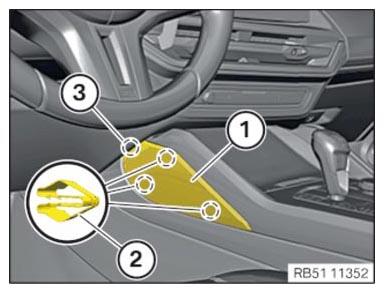

- Detach the knee pad (1) from the clamps (2) using the special tool 0 496 569 (00 9 325).
- Maneuver the knee pad (1) out of the guide (3) toward the rear and remove it.
