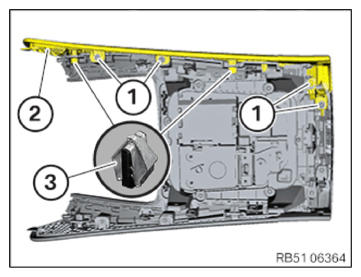

Installing the side center console trim

• Correctly position the side center console trim (2)  and engage it at the clamps (3)  .
• Tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Side center console trim
  Oval-head screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE LEFT AND RIGHT KNEE PAD .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
