Installing the left front carpet

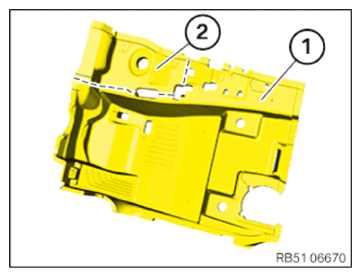

• Lay removed carpet on the new carpet (1) and transfer cuts to new carpet (1).
• Cut off the highlighted area (2) on the new carpet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

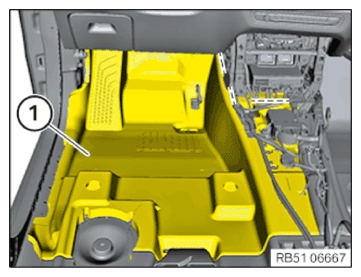

• Insert the carpet (1) in the car.
• Make sure the carpet (1) is positioned correctly at all adjacent parts and in area of heating and air-conditioning unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

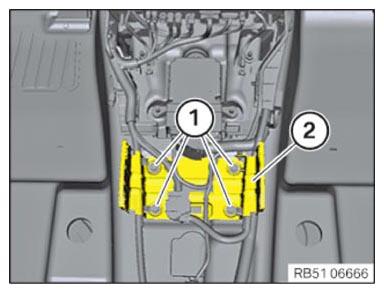

• Install the holder (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Center console holder at the center on body
  Hexagon screw	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM ON THE CENTER BASS .
• Refer to INSTALLING THE AIRBAG CONTROL UNIT .
• Refer to INSTALLING ACCELERATOR PEDAL MODULE .
• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING FRONT SEAT .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
