Installing the airbag control unit
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE .

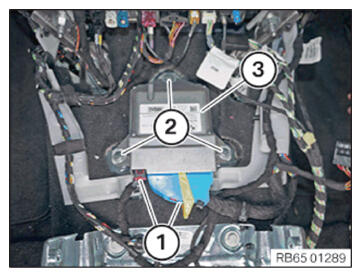

- Position airbag control unit (3) correctly.
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Airbag control unit to body | ||
| screw | Tightening torque | 8 Nm |
- Connect connectors (1) and lock.
Install drip protection cover on airbag control unit
NOTE:
TECHNICAL INFORMATION
If the component described below has not been installed as yet, it should be retrofitted.
If the component described below has not been installed as yet, it should be retrofitted.
NOTE:
The variant with adhesive strips found during removal has changed and is not taken into account during installation.

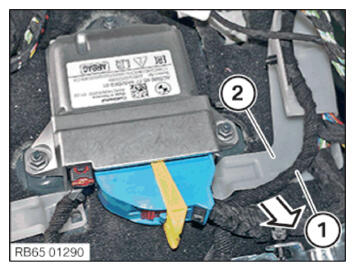

- Pull the cable (1) back a little in the direction of the arrow and position it next to the cable duct (2).

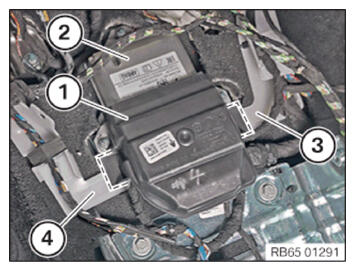

- Attach cover (1) to airbag control unit (2) as shown.
The cover (1) serves as drip protection and must completely cover the plug connections of the control unit (2).
- Make sure that the cover (1) rests against the cable ducts (3) and (4) in the marked areas.
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48-V ELECTRICAL SYSTEM .
- Refer to ADJUSTING THE SENSORS FOR THE DRIVING DYNAMICS .
